Liquid Filter Cartridges

Replacement PARKER High Flow Filter Cartridges

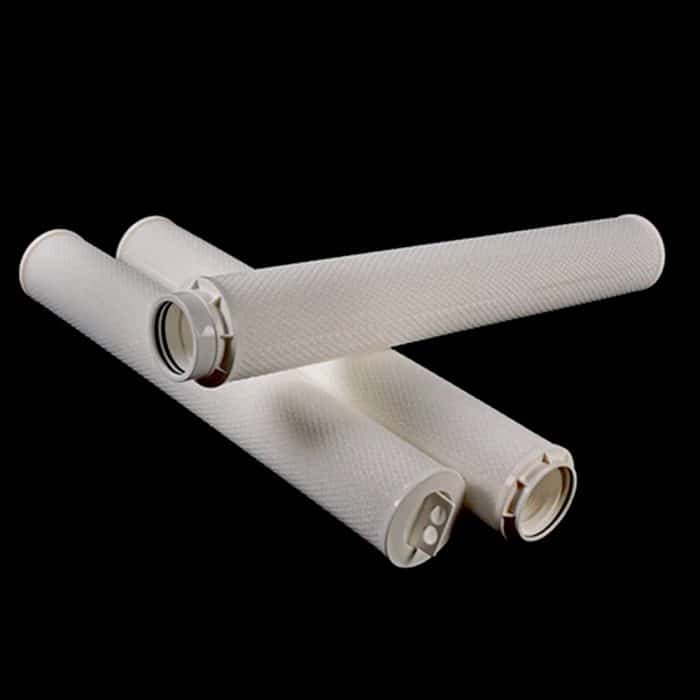

Product name: PARKER high flow filter cartridge
Filter Media Polypropylene Pleated
Length 30″, 40″
Outside Diameter 6 inch(152mm)
Filtration Rating 0.5μm, 1μm, 5μm, 10μm, 20μm
Support/Drainage Polypropylene (PP)
End Cap Material Polypropylene (PP), 226 O-Ring/Flat Cap with handle
Seal Material EPDM, Buna-N, Viton, Silicone
Outside Netting

Send Us Your Inquiry

    Category:

    parker high flow filter cartridge is a replacement cartridge for the depth filtration and other 2-1/2″ diameter cartridges for the high flow applications, such as reverse osmosis pre-filtration and similar applications that nominal efficiency can meet corresponding requirements. The flow rate of each filter cartridge is as high as 1300 liters per minute, which significantly reduce the number of filter cartridges and housing dimensions.

    The treatment capacity of a PARKER filter cartridge is equivalent to that of 10 filter cartridges with an outer diameter of 2-1/2″ and a length of 40″.

    Why Choose Ince’s PARKER High Flow Filter Cartridges

    • Ince’s PARKER High Flow Filter Cartridges accommodates up to 500 GPM with a compact design.
    • Consistent quality water is achieved by reducing particulate matter and removing chlorine.
    • Long-lasting and cost-effective, the cartridge has a long lifespan and requires fewer replacements.
    • Suitable for various applications, such as water purification, beverage processing, and pharmaceutical manufacturing.

    PARKER High Flow Filter Cartridges Details

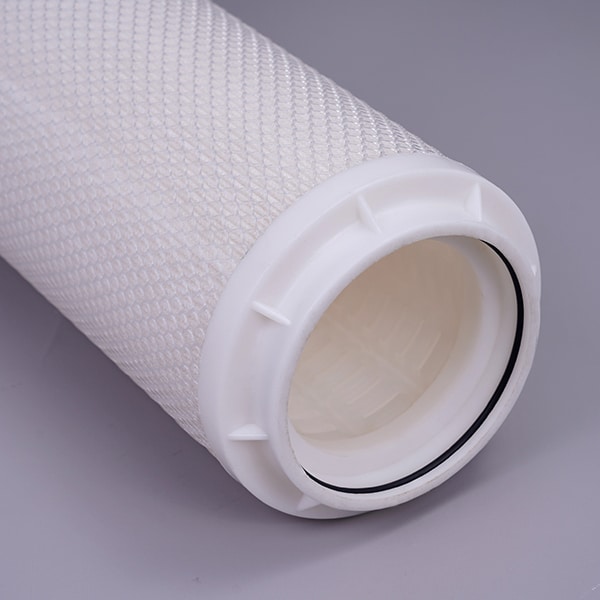

    • Axial Seal Design
      End cap is designed with an axial seal to ensure a better verticality during installation and make the installation easy and fast.

    • Use High-quality Filter Media
      The filter media is made of HEPA highly efficient low resistant materials are pleated to achieve up to 99% ultrahigh filtration
      efficiency and extend the service life of filter cartridges.

    • Customized On Demand
      Various types of non-standard filter elements can be customized according to different needs of customers.

    PARKER High Flow Filter Cartridges Features:

    • 1.High dirt holding capacity, longer service life.
    • 2.Less cartridge changes out to save the labor cost.
    • 3.O-ring design causes no bypass to ensure the filtration efficiency.
    • 4.Easy handling results in less manpower.
    • 5.Wide chemical compatibility for different applications.

    PARKER High Flow Filter CartridgesApplications:

    • 1.Seawater desalination
    • 2.Machinery & equipment
    • 3.Food & beverage
    • 4.Power plant water treatment
    • 5.Steel plant water treatment
    • 6.Microelectronics
    • 7.Oil & chemicals

    PARKER High Flow Filter Cartridges Performance:

    Maximum Operating Temperature  176°F (80°C) @ 30psid (2.1bar)
    Maximum Differential Pressure 70psid (4.8bar) @ 77°F (25°C)
    30psid (2.1bar) @ 176°F (80°C)
    Suggested Maximum Flow Rate 100gpm
    Liquid Flow Direction Outside to inside
